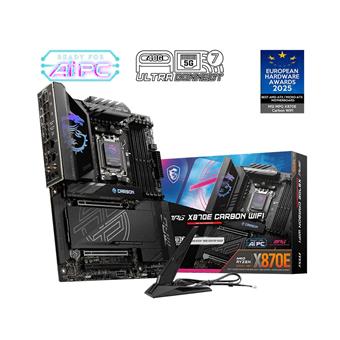

MSI MPG X870E CARBON MAX WIFI

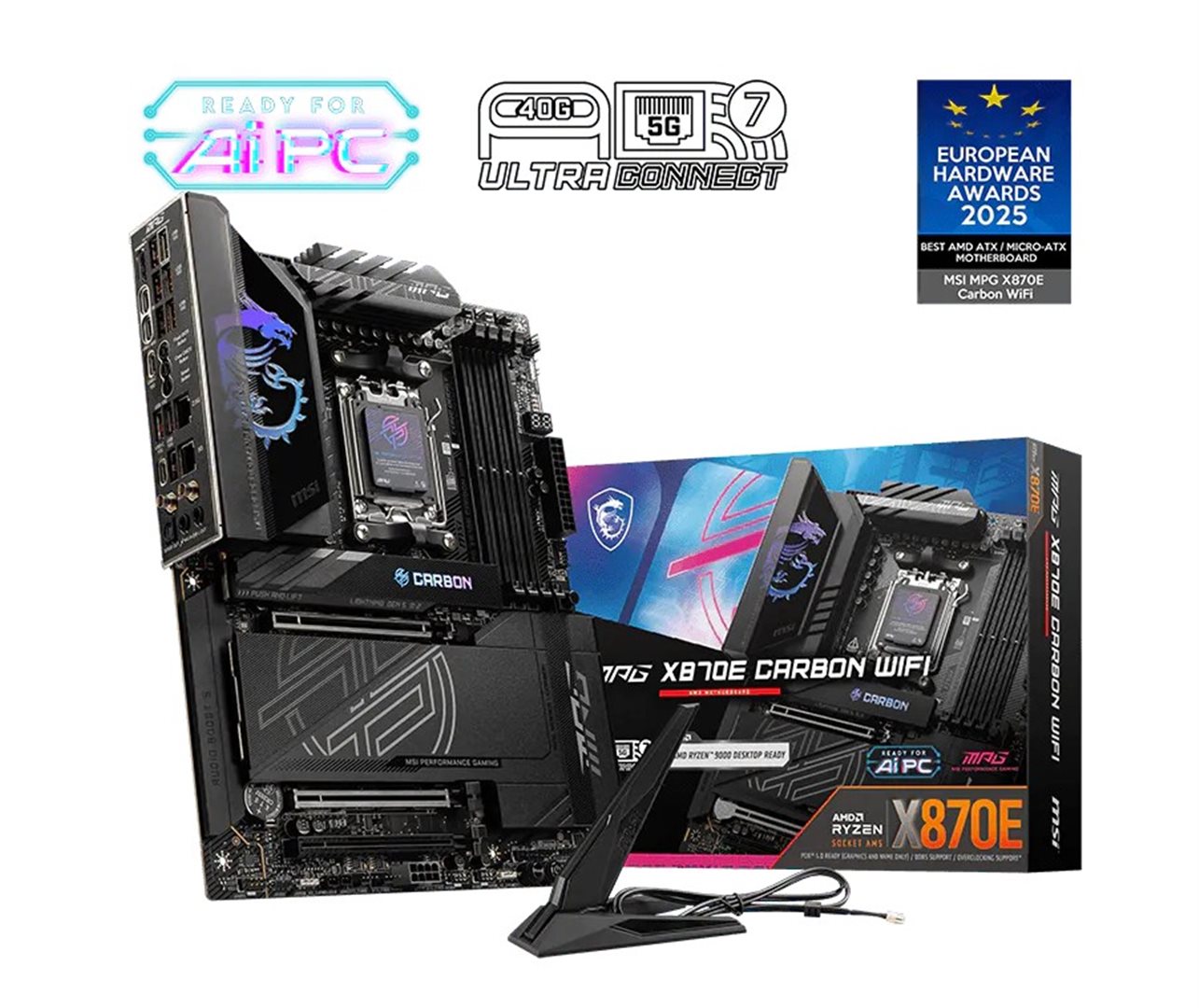

MSI MPG X870E CARBON WIFI

Chipset:  AMD X870E
Rozměrový formát: ATX 243.84mmx304.8mmPodpora pro procesory:  AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Patice procesoru: AM5

Paměť:

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Ryzen 9000 Series Processors max. overclocking:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPOTM
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory

Grafické porty:
1x HDMI™

• Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*

2x Type-C DisplayPort

• USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz

Zvuková karta:

• Realtek ALC4080 Codec
• 7.1-Channel USB High-Performance Audio
• Supports up to 32-Bit/384 kHz playback on front panel
• Supports S/PDIF output

Ethernet:

• 1x Realtek® 8126 5G LAN
• 1x Realtek® 8125 2.5G LAN

WLAN + Bluetooth: Wi-Fi 7 Solution

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM

Rozšiřující sloty:

3x PCI-E x16 slot (Qty)

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 & PCI_E2 slots

• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)

PCI_E3 slot

• Supports up to PCIe 4.0 x4

RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný prostor: 4x M.2 (Qty)

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G (Qty)

• M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M.2_2* slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors

M.2_3 slot

• Supports up to PCIe 4.0 x4

M.2_4 slot

• Supports up to PCIe 4.0 x4

USB:
Zadní USB

• 9x USB 10Gbps Type A
• 2x USB 10Gbps Type C
• 2x USB 40Gbps Type C

Přední USB

• 4x USB 2.0
• 4x USB 5Gbps Type A
• 1x USB 20Gbps Type C

Interní porty: Napájení

• 1× Power Connector (ATX_PWR)
• 2× Power Connector (CPU_PWR)
• 1× Power Connector (PCIE_PWR 8pin)
• 1× CPU Fan
• 1× PUMP_SYS Fan
• 5× System Fan

USB

• 4× USB 2.0 ports
• 4× USB 5Gbps Type-A ports
• 1× USB 20Gbps Type-C port

Ostatní

• 1× ARGB + FAN + USB 2.0 Header (JAF_2)
• 2× Front Panel (JFP)
• 1× Chassis Intrusion (JCI)
• 1× Front Audio (JAUD)
• 1× Thermal Sensor connector (T_SEN)
• 3× Addressable V2 RGB LED connectors (JARGB_V2)
• 1× RGB LED connector (JRGB)

Porty na zadním panelu:

• USB 10Gbps Type-A
• Flash BIOS Button
• Clear CMOS Button
• Smart Button
• 2.5G LAN
• 5G LAN
• Audio Connectors
• HDMI™
• USB 40Gbps Type-C
• USB 10Gbps Type-C
• USB 10Gbps Type-A
• USB 10Gbps Type-C
• Wi-Fi / Bluetooth
• Optical S/PDIF Out

OS: Windows 11 64-bit
